Resolve issues of slow lifting, sliding, and abnormal noise

Comprehensive Troubleshooting Guide for Electric Forklift Hydraulic System Failures

1. Introduction: The Vital Role of the Hydraulic System

The hydraulic system is the muscular powerhouse of an electric forklift, responsible for the critical functions of lifting, lowering, and tilting the mast. When this system fails—manifesting as slow operation, an inability to lift loads, or uncontrolled drifting—productivity grinds to a halt. Unlike electrical issues, hydraulic problems often present through physical symptoms: sounds, leaks, and performance degradation.

This guide provides a systematic, deep-dive approach to diagnosing and resolving common hydraulic failures in Yuweida electric forklifts and stackers. By understanding the function of each component and learning to interpret symptoms, operators and technicians can accurately pinpoint issues, perform effective repairs, and ensure the reliable operation of their material handling equipment.

2. The Hydraulic Circuit: Components and Interdependencies

A basic understanding of the system is essential for diagnosis. The main components are:

• Reservoir/Tank: Stores hydraulic fluid.
• Pump: The heart of the system. Driven by an electric motor, it creates flow and pressure to move the fluid.
• Control Valve: The brain. This assembly of spools and passages directs fluid flow to the lift and tilt cylinders based on operator commands.
• Cylinders: Actuators that convert fluid pressure into linear mechanical force (to lift or tilt).
• Hydraulic Fluid: The medium that transmits power. It also lubricates and cools the system.
• Filters: Protect components from contamination.
• Relief Valve: A safety device that limits maximum system pressure.

3. Symptom-Based Diagnosis: Identifying the Problem

Begin by categorizing the primary symptom:

3.1 Slow Lift/Lower Speed or Lack of Power

• Possible Causes: Low fluid level, contaminated fluid, clogged filter, worn pump, air in the system (aeration), internal leaks, or a faulty relief valve.

3.2 Failure to Lift (Complete Loss of Function)

• Possible Causes: Extremely low fluid, seized pump, severely clogged filter, completely stuck control valve, or electrical issue to the hydraulic motor.

3.3 Load Drift (Lowering or Tilting When Not in Use)

• Possible Causes: Internal leaks in the cylinders (piston seals), leaks in the control valve (spool seals), or a faulty holding valve.

3.4 Erratic or Jerky Movement

• Possible Causes: Air in the system (aeration), contaminated fluid, or a sticking control valve spool.

3.5 Excessive Noise (Whining, Grinding, Knocking)

• Whining: Usually from the pump, indicating cavitation (starved of oil) or aeration.
• Grinding: Mechanical failure, often a failing pump bearing.
• Knocking: Severe cavitation or mechanical shock within the pump.

3.6 Hydraulic Fluid Overheating

• Possible Causes: Continuous operation over relief pressure, contaminated fluid, internal leaks causing constant flow, or a clogged cooler.

4. Phase 1: Initial Checks and Non-Invasive Tests

Always start with the simplest and safest procedures.

• Check Hydraulic Fluid Level:
  • Park on a level surface, lower forks completely, and check the sight glass or dipstick.
  • Low Level: Top up immediately with the manufacturer-recommended fluid type (e.g., ISO VG 32 or VG 46). Identify and fix the source of any leak.
• Visual Inspection for Leaks:
  • Inspect all hoses, fittings, cylinders, and the pump for external leaks. Trace oil streaks to their source.
• Fluid Condition Check:
  • Wipe the dipstick on a white paper towel. Look for:
    • Discoloration (Milky/Cloudy): Indicates water contamination.
    • Darkening/Burning Smell: Indicates overheating and breakdown.
    • Gritty Feel: Indicates solid contamination (metal, dirt).
• Filter Inspection: Check the service interval and condition of the suction and pressure filters. A clogged filter is a common cause of pump cavitation.

5. Phase 2: Advanced Performance Testing

If initial checks don’t resolve the issue, proceed to performance tests.

5.1 Pressure Test (The Most Critical Diagnostic)

• Purpose: Determines if the pump and relief valve can generate adequate force to lift a load.
• Tools: A hydraulic pressure test kit (gauge, hoses, adapters).
• Procedure:
  1. Locate the pressure test port on the main control valve (often on the lift circuit).
  2. Install the pressure gauge.
  3. Start the forklift and fully activate the lift function against the relief valve (hold the lever until the pump sound changes to a heavy strain).
  4. Read the maximum pressure on the gauge.
• Interpretation: Compare the reading to the manufacturer’s specification (typically 2000-2500 PSI / 140-175 bar).
  • Pressure too Low: Faulty pump, stuck relief valve, or internal leak.
  • Pressure correct but still slow: Problem is likely with cylinder seals (internal leak) or a flow issue (e.g., a restricted passage).

5.2 Drift Test

• Purpose: Isolates the source of a load-lowering drift.
• Procedure:
  1. Lift a rated load to full height.
  2. Mark the position of the fork or cylinder rod.
  3. Let it sit for 5-10 minutes.
  4. Measure the amount of drift.
• Interpretation: Excessive drift confirms internal leakage. To isolate between the cylinder and the valve:
  1. Install the pressure gauge on the lift cylinder port.
  2. Lift the load and shut off the truck.
  3. If pressure drops rapidly, the leak is in the cylinder piston seals.
  4. If pressure holds, the leak is in the control valve.

6. Component-Specific Diagnosis and Repair

6.1 Hydraulic Pump

• Symptoms: Low pressure, slow operation in both lift and tilt, high-pitched whine.
• Testing: Perform a flow test if possible. A pump that generates pressure but insufficient flow is worn internally.
• Solution: Rebuild or replace the pump. Always flush the system after a pump failure to remove contamination.

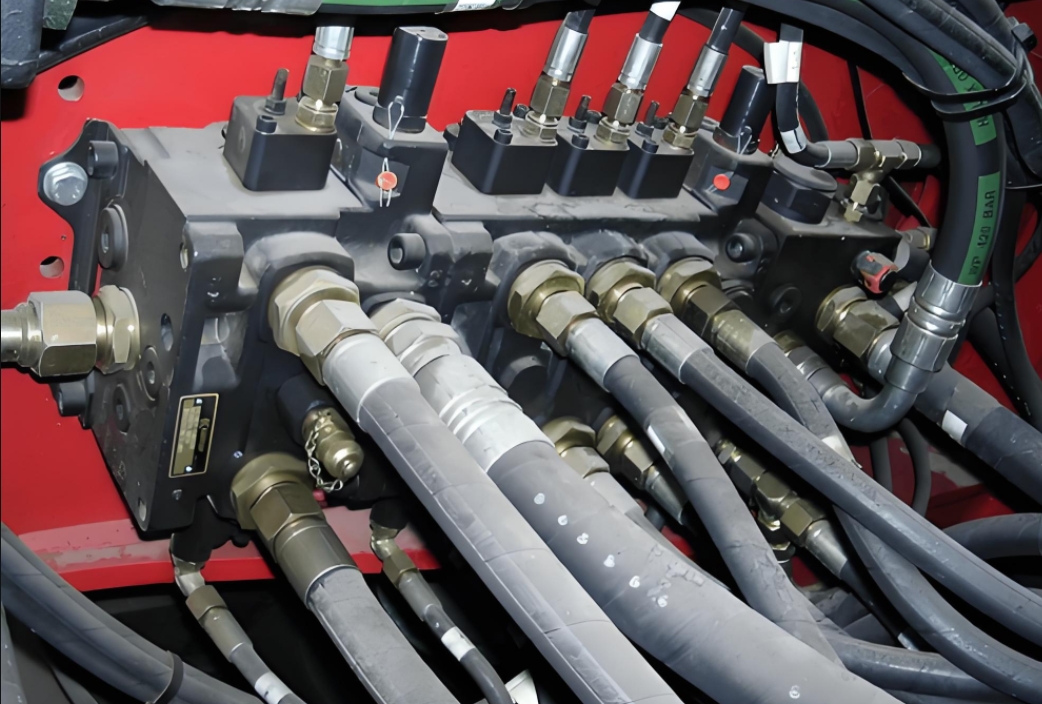

6.2 Control Valve

• Symptoms: Drift, failure of one function (lift or tilt), jerky movement.
• Testing: Listen for internal leaking (a constant hissing sound when not in use). Swap solenoids or coils from a working function to test.
• Solution: Often requires replacement of the entire valve assembly or a specific seal kit. Repairing individual spools is a highly specialized task.

6.3 Lift and Tilt Cylinders

• Symptoms: Load drift, oil leakage from the rod seal.
• Testing: The drift test (above) is the best method.
• Solution: Repacking the cylinder involves replacing the piston and rod seals. This requires removing the cylinder from the truck.

6.4 Relief Valve

• Symptoms: Low pressure, lack of power.
• Testing: The pressure test directly checks its function.
• Solution: Often adjustable. If adjustment doesn’t work, replace the valve cartridge.

7. Maintenance and Prevention Strategies

• Fluid and Filter Changes: Follow the manufacturer’s strict intervals. This is the cheapest form of insurance against hydraulic failure.
• Contamination Control: Keep the reservoir cap and area clean. Never use dirty funnels or containers when adding fluid.
• Regular Inspections: Look for weeping seals, damaged hoses, and loose fittings during pre-operation checks.
• Proper Operation: Avoid “riding the relief valve” (holding the lever until the pump stalls) for extended periods, as this generates extreme heat and accelerates fluid degradation.

8. Safety Protocols for Hydraulic Repair

• Relieve Pressure: Before disconnecting any hose or component, lower the forks completely and cycle all controls to relieve system pressure.
• Beware of Hot Oil: Hydraulic fluid can become extremely hot and cause severe burns. Allow the system to cool before working on it.
• Use Correct Tools: Always use line wrenches on fittings to avoid rounding them.
• Cleanliness: Ensure the work area is impeccably clean to prevent introducing contamination during repairs.

9. Conclusion: Restoring Hydraulic Integrity

Diagnosing hydraulic system issues requires a methodical approach, moving from simple observations to precise pressure measurements. By using this guide to isolate the problem to a specific component—be it the pump, valve, cylinder, or fluid itself—you can execute targeted repairs that restore your Yuweida electric forklift to full functionality, ensuring safety and productivity in your material handling operations.

For complex repairs involving pump rebuilds or valve reconditioning, consult the detailed schematics in your Yuweida operator’s manual or contact our dedicated technical support team for expert guidance and genuine replacement parts.
